USB to Serial Converter - USB Std.A type
RS-USB602F

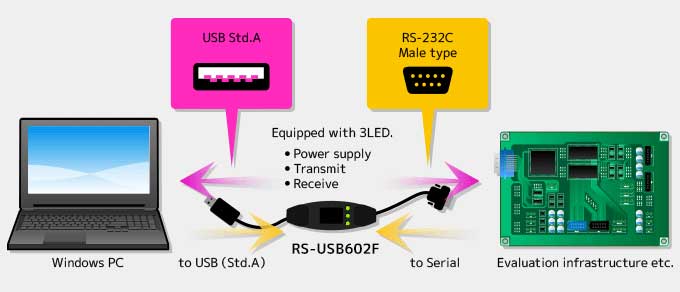

- Connect RS-232C serial devices such as barcode scanner, magnetic card reader with serial interface via this converter.
- - RS-USB602F is a USB to serial converter.
- Up to 230.4Kbps data transfer rate.
- Standard USB (A type Male) connector.
- Virtual COM port driver RS-USB602F can be used with FTDI's VCP drivers to provide a COM port on a PC.
- Power/Transmit/Receive LED indicators
- Bus powered. no need external power supply
- Product Features
- System Requirements
- Specifications
- Product Overview
Product Features
RS-USB602F is a USB to serial converter.
Compatible with Universal Serial Bus specification Rev. 2.0.
Standard USB (A type Male) connector.
Easy to connect to PC.
Equipped with the USB Std.A type Male connector that can be connected directly to the USB port of PC.
 |
 |
Power/Transmit/Receive LED indicators.
for monitoring communication status.
Power supply for RS-USB602F use the bus power from the USB port.
If the power from USB bus is properly supplied 5V, PWR LED will be on.
PWR : Power LED
TXD : Transmit data indicator (Host to Device)
RXD : Receive data indicator (Device to Host)
Easy to detect for the data flow.
 |
